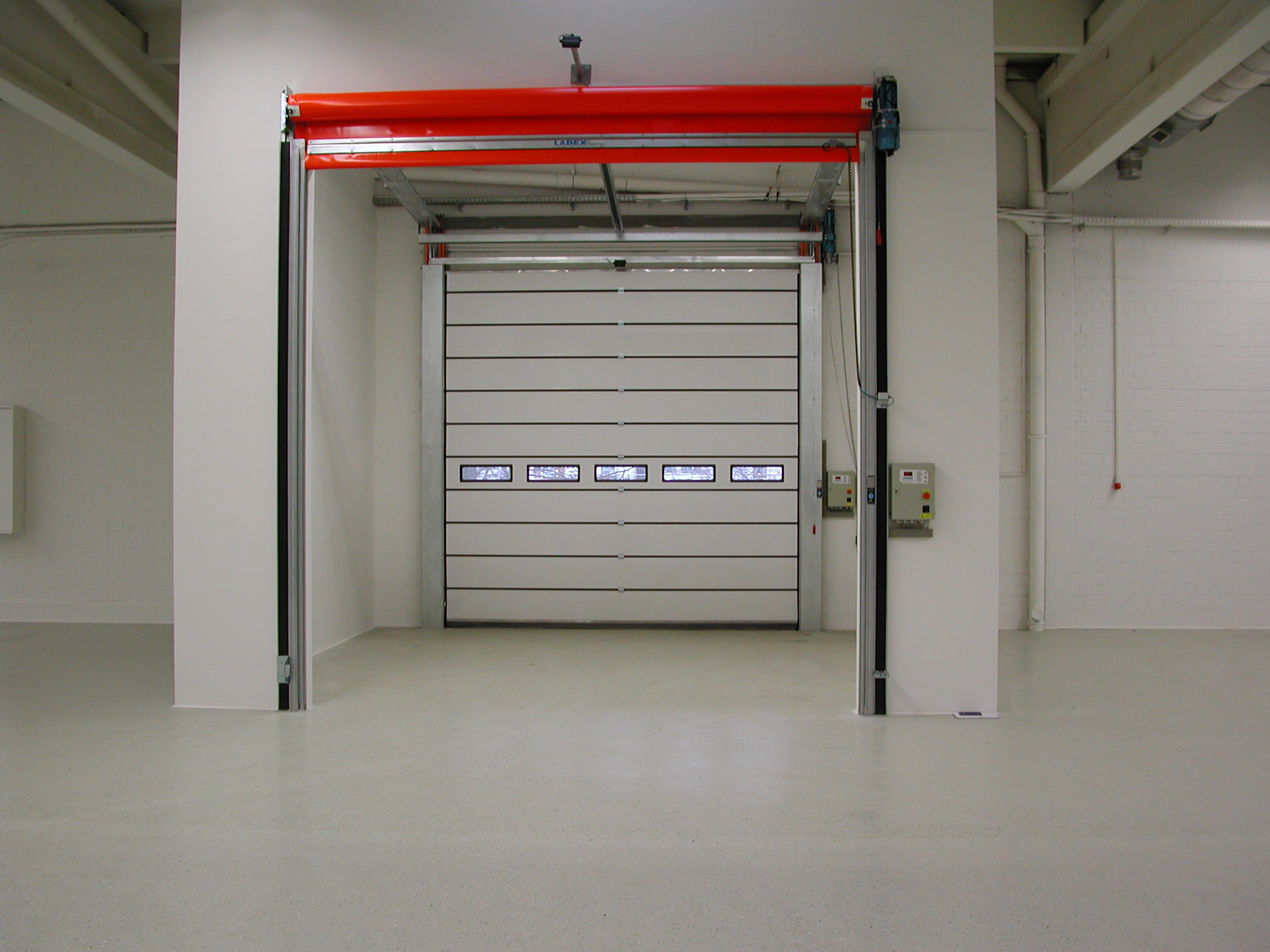

SPRINT high-speed sectional doors combine the advantages of conventional industrial sectional doors with the performance of high-speed door systems. Thanks to their high opening speed, they reduce the time the building opening remains open, helping to minimise energy losses.

These doors are suitable for both indoor and outdoor applications, particularly in industrial and logistics facilities requiring frequent and rapid access.

When installed in an external wall, SPRINT doors can replace the combination of a conventional sectional door and a separate high-speed door, providing both functions in a single system.

Main Advantages

Opening speed of up to 1,000 mm/s (1 m/s)
Combination of sectional and high-speed door technology in one system
Reduced energy losses thanks to shorter opening times
Suitable for both indoor and outdoor applications
Smooth acceleration and deceleration thanks to a frequency-controlled drive
Smooth operation and high structural stability

Construction

SPRINT doors are available in two versions: S40 SPRINT and A40 SPRINT.

The construction incorporates double tandem rollers, a solid shaft and a specially designed supporting system, ensuring stable and smooth operation even at high opening speeds.

The frequency-controlled drive provides soft-start and soft-stop functionality. Instead of starting immediately at full speed or stopping abruptly, the door accelerates smoothly, reaches its operating speed and gradually decelerates before reaching its end position.

This controlled movement ensures smooth operation, reduces mechanical stress on the door components and contributes to long-term reliability.

Depending on the building configuration, three track arrangements are available: standard lift, high lift and vertical lift.

Product parameters

Key Features of the SPRINT System

SPRINT high-speed sectional doors are designed for safe, reliable and efficient operation, even in demanding industrial environments.

Safe, durable and reliable construction
Low maintenance requirements
Suitable for indoor and outdoor installation
High-quality materials and components
No need for an additional high-speed door when installed in an external wall
Opening speed of up to 1,000 mm/s
Maximum panel height of 370 mm, allowing smooth movement around the curved track section with minimal resistance
High structural stability and rigidity thanks to the reduced panel height
Double tandem rollers for smooth operation and long service life
Solid 1¼-inch shaft as standard
High-quality bearings combined with specially developed bearing plates
Special tubular supporting system for maximum stability
Springs with a standard service life of 50,000 cycles
Frequency-controlled drive with soft-start and soft-stop functionality
Wide range of optional activation devices, including radar sensors and pull-cord switches
Photoelectric safety beam for enhanced operational safety
Three available track arrangements: standard lift, high lift and vertical lift

SPRINT Versions and Performance

SPRINT is available in two versions: S40 SPRINT and A40 SPRINT.

Its main advantage is an exceptionally high opening speed, which can be up to five times faster than that of conventional electrically operated sectional doors.

Despite these high operating speeds, the system is designed to ensure safe, reliable and trouble-free operation.

This performance is achieved through the use of high-quality materials and components, which contribute to a long service life and dependable operation, even under intensive use.

Installation Options

SPRINT high-speed sectional doors are particularly suitable for installation in external walls, where they can replace the combination of a conventional sectional door and a separate high-speed door.

Thanks to the availability of different track arrangements, installation is comparable to that of standard industrial sectional doors.

Three lifting configurations are available:

Standard lift – suitable for conventional installations with sufficient space beneath the ceiling
High lift – suitable for buildings with increased headroom above the opening
Vertical lift – suitable for buildings where the door can travel vertically above the opening

SPRINT doors offer reliable operation, straightforward control and flexible installation options, making them suitable for a wide range of industrial and logistics applications.
