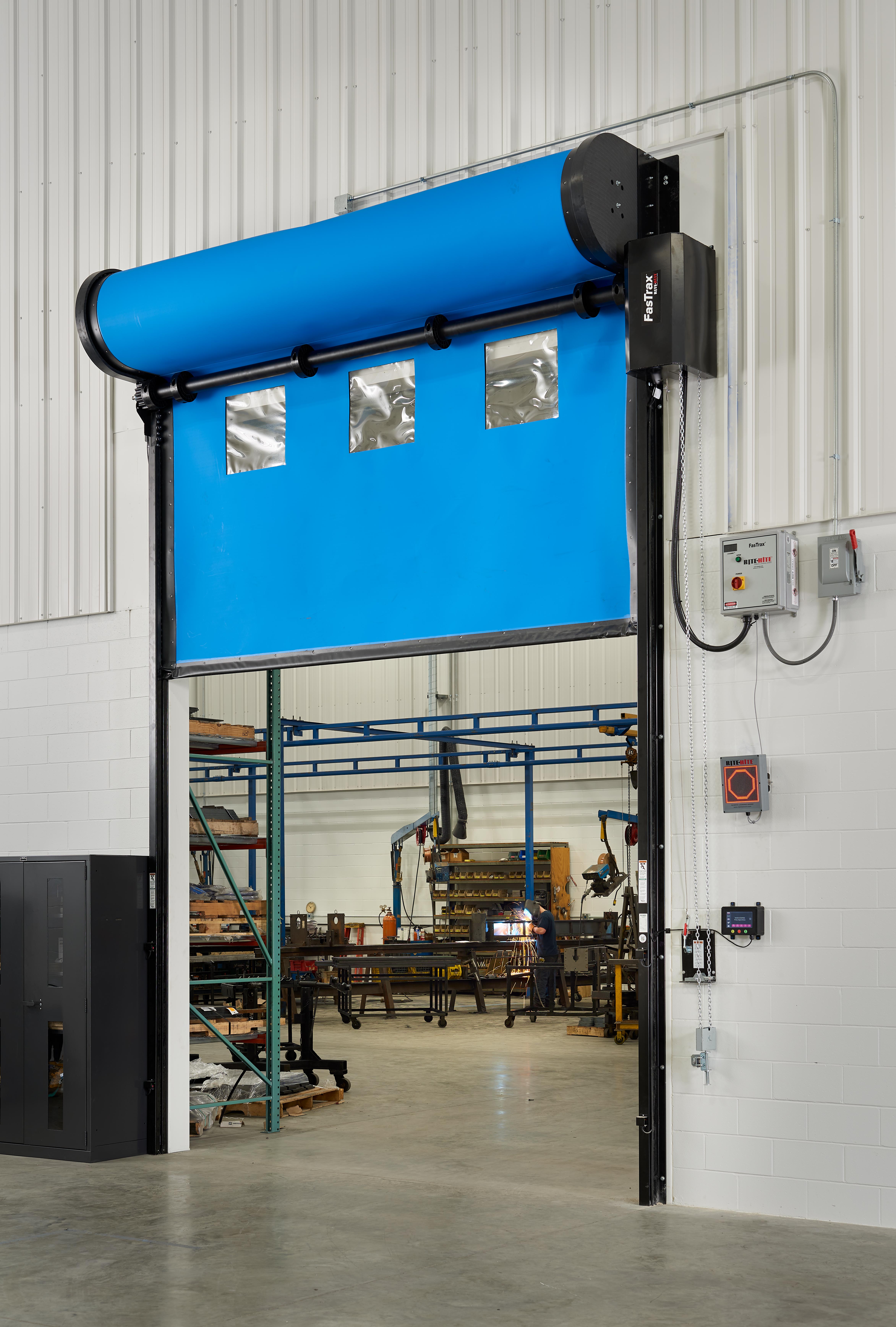

Combining the unique Thermal-Flex™ system with InsulMax R-4 tarpaulin creates an innovative, energy-efficient and fast-running refrigerated door. The choice is easy.

Product description

SIMPLE DESIGN AND EASY SELECTION FOR ALMOST ANY HOLE

Available with standard routing, raised routing, vertical routing, broken routing and custom designs. FasTrax FR LDs are suitable for almost any opening with less costly construction modifications.

MAXIMUM OPERATING TIME, MINIMUM MAINTENANCE

Fewer moving parts means reliable, trouble-free operation and low cost of ownership over its entire lifetime.

HIGH OPERATING SPEEDS

Operating speeds of up to 2.5 m/s allow for short cycle times, increasing productivity and maximizing energy savings.

TRUE AUTO RE-FEED™

After an inadvertent impact, the FasTrax FR LD door sail automatically re-feeds into the side frame without human intervention, keeping the freezer door closed and minimizing downtime.

MAXIMUM SAFETY

Thanks to Soft-Edge™ technology, Virtual Vision, available motion detection, two photocells and an optional large clear viewing window.

EXCELLENT SEALING AROUND THE ENTIRE PERIMETER

Reduces the need for thermometers and air curtains, which can be costly to operate.

Product parameters

SPEED

Up to 2.5 m/s with standard frequency converter

Maximum speed depends on door size

SIZE

Minimum - 915 mm x 2500 mm

Maximum - 3050 mm x 5000 mm

ELECTRICAL REQUIREMENTS

Three-phase: 400 V

SAIL MATERIAL

InsulMax - 25 mm of polyester insulation placed between two layers of 30 ounce (1,020 g/m2) urethane.

GRAPHICAL USER INTERFACE (GUR)

A 7 inch (178 mm) LCD touch screen interface that displays real-time door status and provides enhanced safety by allowing an individual to easily access the controller settings without wearing the necessary personal protective equipment often required to access a live electrical panel.

CONTROL UNIT

The i-COMM™ III digital control unit has a frequency converter. The IP66 unit is attached via an external connection that is fed into the prepared terminals.

GUIDELINES

Wind guides made of wear-resistant Lexan material maintain sail tension along the entire length of the side frame. Standard wind pressure 40 km/h for internal doors.

Soft-Edge™ technology, two photocells mounted at 255 mm ta 1370 mm from the floor (Light barrier if door opening height ≥ 2700 mm).
